Antenna socket box Gira
Add to selection
General information
Ordercode YESSS
6030-3590
Product code
004100
EAN code
4010337041009
Product group
Antenna socket box
Brand
Gira

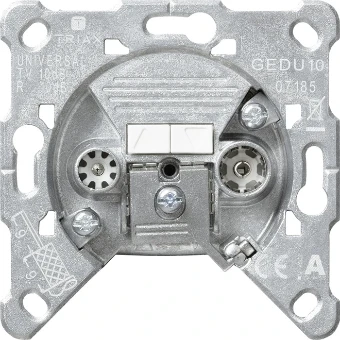

antenna sock. UD2410ST Insert
antenna sock. UD2410ST Insert
Product description
Antenna socket insert (UD2410ST) - 2-gang routing box in plug-in technology. - IEC plug for FM (radio) and DVB-T/T2. - IEC pin jack for DVB-S/S2 (SAT). - DC feed-through from the SAT connection to the input and bidirectional circulation between input and output with bridging of the DC voltage. - The internal conductor is connected simply by pressing it, without the need for screws. Internal conductor can thus be removed multiple times. - Complies with shield class A. For non-reflective termination of a side circuit, for use in the last antenna socket outlet. Suitable for terrestrial reception, area couplers, and satellite reception systems.
Product specifications
Mounting method
Flush mounted (plaster)
Number of outlets
2
Model
Loop-through socket
Suitable for cable modem
Yes
Suitable for remote power supply
No
Tap loss at 860 MHz
10 dB
Through loss at 860 MHz
2.5 dB
Tap loss at 2150 MHz
10 dB
Through loss at 2150 MHz
2.5 dB
Type of fastening
Mounting with claw and screw
Colour
Other
Surface protection
Other
Material
Other
Material quality
Other
Halogen free
No
Anti-bacterial treatment
No
Degree of protection (IP)
IP20
Product information
