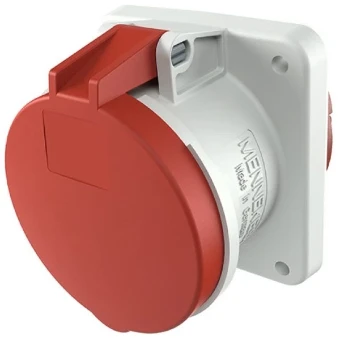

Panel-mounted CEE socket outlet (IEC 60309) Mennekes
Add to selection
General information
Ordercode YESSS
6040-5512
Product code
1252P
EAN code
4015394149125
Product group
Panel-mounted CEE socket outlet (IEC 60309)
Brand
Mennekes
Type
1252P
Anbaudose TA, 63A5p 6H400V, IP44
Anbaudose TA, 63A5p 6H400V, IP44
Product description
63A5P 6H400V Anbaudose TA IP 44 mit Rahmenklemme und X-CONTACT FL. 107 X 100 mm BL. 85 X 77 mm mit Pilotkontakt
Product specifications
Number of poles
5
IEC-amperage
63 A
Identification colour
Red
Rated voltage
399 - 400 V
Clock hour position
6 h
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Rated frequency
50 - 60 Hz
Degree of protection (IP)
IP44
Amperage according to UL/CSA (for UL-version)
60 A
Connection system
Screwed terminal
Insert direction
Straight
Cable entry
Other
Material
Plastic
Military model
No
Flange size vertical
107 mm
Drill hole distance vertical
85 mm
Flange size horizontal
100 mm
Drill hole distance horizontal
77 mm
Contact material
CuZn
Surface coating contacts
Untreated
