Crimp splices for aluminium conductor Cimco
Add to selection
General information
Ordercode YESSS
0318-1446
Product code
183451
Product group
Crimp splices for aluminium conductor
Brand
Cimco

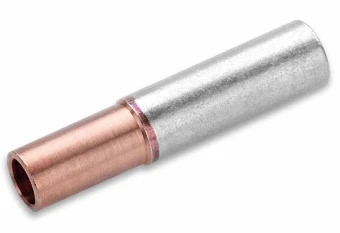

AL-CU press connector 150-25
AL-CU press connector 150-25
Product description
AL-CU press connector DIN 46267, part 2 made of E-Al and of E-Cu according to EN 13600, bare. For connecting CU cables DIN 48201, ALU cables DIN 48201, part 1 and ALU ropes DIN EN 50182. AL 150-25
Product specifications
Cross section form
Round
Nominal cross section aluminium, RM/SM
150 - 150 mm²
Nominal cross section aluminium, SE
185 - 185 mm²
Reduced Al nominal cross section
185 mm²
Nominal cross section Cu
25 mm²
Connection as copper bolt
No
Material
Aluminium/copper
For pull protected connections
No
Suitable for Al/St-cables
No
Suitable for Aldrey-cables
No
Oil stop/centre bar
Yes
Voltage level
0.6/1 kV
