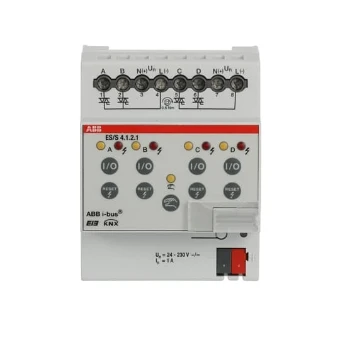

Switch actuator for bus system ABB KNX
Add to selection
General information
Ordercode YESSS
6012-6297
Product code
2CDG110058R0011
EAN code
4016779672061
Product group
Switch actuator for bus system
Brand
ABB
Serie
KNX
Type
ES/S 4.1.2.1
ES/S4.1.2.1 Elektronischer Schaltaktor, 4fach, 1 A, REG
ES/S4.1.2.1 Elektronischer Schaltaktor, 4fach, 1 A, REG
Product description
Die Elektronischen Schaltaktoren steuern thermoelektrische und motorische (3-Punkt) Stellantriebe in Heiz-/Kühlsystemen und Schalten geräuschlos beliebige Lasten bis 1 A bei 24..230 V AC/DC. Die Halbleiterausgänge sind kurzschluss- und überlastsicher. Mit manueller Bedienung. : KNX
Product specifications
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Mounting method
DRA (DIN-rail adaptor)
Radio frequency bidirectional
No
Width in number of modular spacings
4
Local operation/hand operation
Yes
With LED indication
Yes
Max. switching current
1 A
Max. switching power
230 W
Suitable for C-load
No
Max. number of switching contacts
4
Output power
230 W
Rated current
1 A
Rated operating voltage
24 - 230 V
Different phases connectable
Yes
With bus connection
Yes
Bus module detachable
No
Modular expandability
No
Degree of protection (IP)
IP20
Min. depth of built-in installation box
64.5 mm
