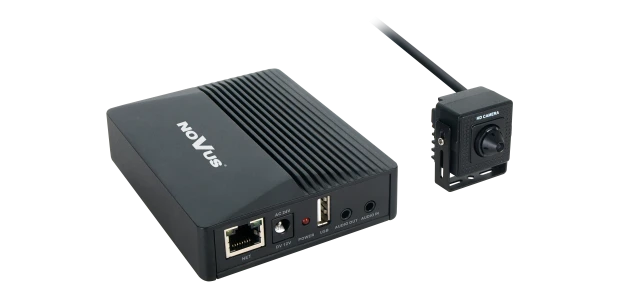

2MPX Mini-IP Camera

  • 6103-6786
  • |
  • NV-2ATM-6701/F
0 piece in stock
Login to order
Don’t have an account? Create one
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

2MPX Mini-IP Camera 2MPX Mini-IP Camera
Ordercode YESSS
6103-6786
Product code
NV-2ATM-6701/F
Product group
Camera for surveillance system
Brand
AAT NOVUS

Product description

2 MPX Special Purpose IP Camera; 2 MPX CMOS sensor 1/2.8” SONY; Min. Illumination: from 0.05 lx; WDR; DNR: 2D, 3D; Defog (F-DNR); HLC; Lens Type: pinhole, f=2.8 mm/F2.2; 30 fps for each resolution; Multistreaming Mode: 3 streams; Video/Audio Compression: H.264, H.264+, H.265, H.265+, MJPEG/G.711; Video analytics functions: tamper, abandoned object, object disappearance, line cross, zone entrance, zone exit, face detection, cross counting, heat map, scene change, video blurred, video color cast, objects distinguishing, intrusion detection, target counting by area; Privacy Zones: 4; motion detection; audio in/out; Alarm Input/Output: 8 (NO/NC)/4 relay type (max. 12VDC/300mA); Memory Card Slot: microSD - capacity up to 256GB; ; Power Supply: 12 VDC, PoE (IEEE 802.3af, Class 3); Operating Temperature: -30°C ~ +60°C;

Product specifications

Model
Standard (Fixed)
Picture system
NTSC
Property picture system
Colour
Power over Ethernet (PoE)
802.3af (PoE)
Colour
Black
Height
290 mm
Width
30 mm
Depth
30 mm
Diameter
30 mm
Number of pixels (Megapixel)
2
Supply voltage
12 - 12 V
With lens
Yes
Voltage type
DC
With infrared lighting
Yes
Number of audio outputs
1
Impact strength
IK10
With video motion detector
Yes
Degree of protection (IP)
IP41
Power consumption
6 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Protocol
TCP/IP
