Feed-through terminal block WAGO
Add to selection
General information
Ordercode YESSS
6044-3282
Product code
727-227/024-000
EAN code
4045454189167
Product group
Feed-through terminal block
Brand
WAGO

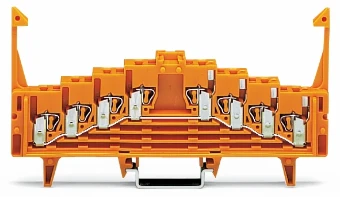

4-level same potential terminal block with locking clips all clamping
4-level same potential terminal block with locking clips all clamping
Product description
4-level same potential terminal block with locking clips all clamping units internally commoned with 2.3 mm Ø test port marking: d-c-b-a--a-b-c-d
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 1.5 mm²
Number of levels
4
Number of clamp positions per level
4
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 0.75 mm²
Connectable conductor cross section solid-core
0.08 - 1.5 mm²
Connectable conductor cross section multi-wired
0.08 - 1.5 mm²
Rated current In
18 A
Rated voltage
250 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Operating temperature
105 - 105 °C
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Grey
Internally connected stages
No
Width
7.62 mm
Height
126 mm
Depth
62 mm
