(Knife) disconnect terminal block WAGO
Add to selection
General information
Ordercode YESSS
0558-2627
Product code
2002-1871
EAN code
4045454974855
Product group
(Knife) disconnect terminal block
Brand
WAGO
4-conductor disconnect/test terminal block with test option orange dis
4-conductor disconnect/test terminal block with test option orange dis
Product description

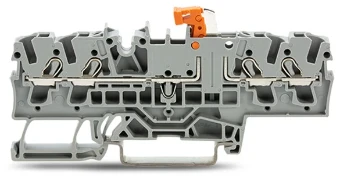

4-conductor disconnect/test terminal block with test option orange disconnect link for DIN-rail 35 x 15 and 35 x 7.5 2.5 mm² Push-in CAGE CLAMP®
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Rated current In
16 A
Rated voltage
400 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Number of clamp positions per level
4
Internally connected stages
No
Operating temperature
105 - 105 °C
Closing plate required
Yes
Colour
Grey
Type of slitting
None
Type of cross disconnection
None
With integrated test socket
No
Width
5.2 mm
Height
87.5 mm
Depth
32.9 mm
Product information
