Single- and multi-pole terminal strip WAGO
Add to selection
General information
Ordercode YESSS
6044-7133
Product code
261-109/331-000
EAN code
4044918618885
Product group
Single- and multi-pole terminal strip
Brand
WAGO

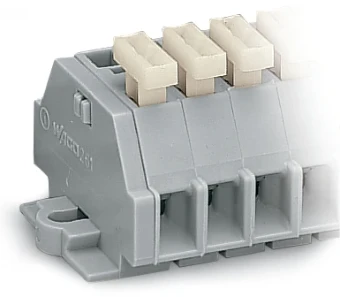

2-conductor terminal strip on one side with push-buttons with fixing
2-conductor terminal strip on one side with push-buttons with fixing f
Product description
2-conductor terminal strip on one side with push-buttons with fixing flanges 9-pole for screw or similar mounting types Fixing hole 3.2 mm Ø 2.5
Product specifications
Drill hole distance centrically
62.1 mm
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 2.5 mm²
Material insulation body
Thermoplastic
Mounting method
Other
Explosion-tested version 'Ex e'
No
Connectable conductor cross section solid-core
0.08 - 2.5 mm²
Connectable conductor cross section multi-wired
0.08 - 2.5 mm²
Rated current In
24 A
Rated voltage
500 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of poles
9
Number of clamp positions per pole
2
Operating temperature
-30 - 85 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
No
Colour
Grey
Transparent
No
Halogen free
Yes
Width
68.1 mm
Height
28.1 mm
Depth
23.3 mm
