Fuse terminal block WAGO
Add to selection
General information
Ordercode YESSS
0558-3087
Product code
2006-1621/1000-836
EAN code
4045454824037
Product group
Fuse terminal block
Brand
WAGO

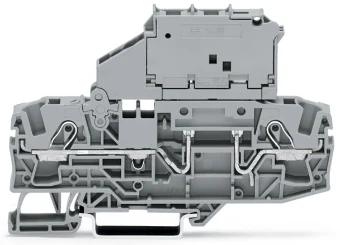

2-conductor fuse terminal block with pivoting fuse holder for 5
2-conductor fuse terminal block with pivoting fuse holder for 5 x 30 m
Product description
2-conductor fuse terminal block with pivoting fuse holder for 5 x 30 mm miniature metric fuse with blown fuse indication by LED 230 V for DIN-rai
Product specifications
Type of fuse insert
G-fuse 5x30 mm
Connectable conductor cross section fine-strand without cable end sleeve
0.5 - 10 mm²
Rated current In
10 A
Mounting method
DIN rail (top hat rail) 35 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
LED
Supply voltage for defect-indication
230 - 230 V
Voltage type for defect indication
AC
Connectable conductor cross section fine-strand with cable end sleeve
1.5 - 6 mm²
Connectable conductor cross section solid-core
1 - 10 mm²
Connectable conductor cross section multi-wired
0.5 - 6 mm²
Rated voltage
800 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Material insulation body
Thermoplastic
Operating temperature
105 - 105 °C
Closing plate required
Yes
Colour
Grey
Width
7.5 mm
Height
96.3 mm
Depth
59 mm
