Cable connector WAGO
Add to selection
General information
Ordercode YESSS
6045-1005
Product code
231-2302/026-000
EAN code
4044918563628
Product group
Cable connector
Brand
WAGO

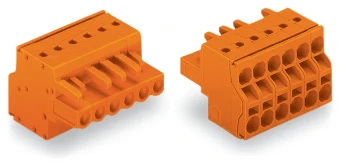

2-conductor female connector Push-in CAGE CLAMP® 2.5 mm² orange
2-conductor female connector Push-in CAGE CLAMP® 2.5 mm² orange
Product description
2-conductor female connector Push-in CAGE CLAMP® 2.5 mm² Pin spacing 5.08 mm 2-pole with integrated end plate 2,50 mm² orange
Product specifications
Type of connection
Printed circuit board to cable
Contact type
Bus
Number of poles
2
Number of plug-in contact rows
1
Modular spacing contacts
5.08 mm
Modular spacing connections
5.08 mm
Angle contact/conductor connection
180° (horizontal)
Rated current In
16 A
Rated voltage
320 V
Rated surge voltage
4 kV
Overvoltage category
III
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
0.2 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 1.5 mm²
Connectable conductor cross section solid-core
0.2 - 2.5 mm²
Connectable conductor cross section multi-wired
0.2 - 2.5 mm²
Type of electric connection
Spring clamp connection
Connectable cable type
Tubular cable
Material of contact surface
Tin
Material contact
Other copper alloys
Material insulation body
Thermoplastic
Housing material
Plastic
Coating housing
Uncoated
Housing colour
Orange
With protective conductor
No
Operating temperature
-60 - 85 °C
Degree of protection (IP), mounted
IP20
