Printed circuit board connector WAGO
Add to selection
General information
Ordercode YESSS
6045-2878
Product code
2091-1352/000-1000
EAN code
4050821364825
Product group
Printed circuit board connector
Brand
WAGO

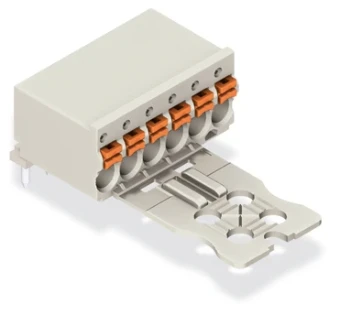

1-conductor THT female connector angled push-button Push-in CAGE CLAMP
1-conductor THT female connector angled push-button Push-in CAGE CLAMP
Product description
1-conductor THT female connector angled push-button Push-in CAGE CLAMP® 1.5 mm² Pin spacing 3.5 mm 2-pole 1.0 mm Ø solder pin Gripping plate d
Product specifications
Type of connection
Flexible PCB-connector
Connector model
Free connector
Contact type
Pin
Number of poles
2
Number of plug-in contact rows
1
Modular spacing contacts
3.5 mm
Modular spacing connections
3.5 mm
Angle PCB/contact
0°/180° (horizontal)
Rated current In
10 A
Rated voltage
160 V
Rated surge voltage
2.5 kV
Over voltage category
III
Pollution degree
2
Material of contact surface
Tin
Type of electric connection
Soldering connection
Diameter connection pin
1 mm
Length pin
3.6 mm
Suitable for PCB thickness
2 mm
Material insulation body
Thermoplastic
Colour housing
Grey
Operating temperature
-60 - 100 °C
Type of PCB fastening
Connecting contact
Type of fastening
Solder
Type of banding
None
Product information
