Feed-through terminal block
Add to selection
General information
Ordercode YESSS
6090-0900
Product code
1484265
Product group

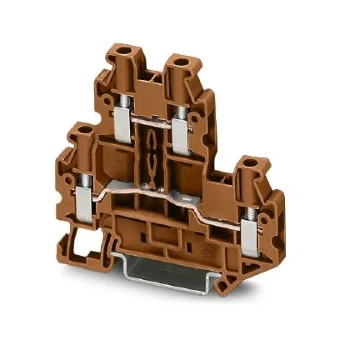

Feed-through terminal block
Type
UTTB 4 BN
Doppelstockklemme
Doppelstockklemme
Product description
Doppelstockklemme, Nennspannung: 800 V, Nennstrom: 30 A, Anschlussart: Schraubanschluss, 1. und 2. Etage, Bemessungsquerschnitt: 4 mm², Querschnitt: 0,14 mm² - 6 mm², Montageart: NS 35/7,5, NS 35/15, Farbe: braun
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.14 - 6 mm²
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Connectable conductor cross section fine-strand with cable end sleeve
0.14 - 4 mm²
Connectable conductor cross section solid-core
0.14 - 6 mm²
Connectable conductor cross section multi-wired
0.14 - 1.5 mm²
Rated current In
30 A
Rated voltage
800 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Operating temperature
-60 - 105 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Brown
Internally connected stages
No
