Servoleitung
- 6131-0744
- |
- 0027950/500
0 m
lagernd
Sie haben noch kein Konto? Erstelle einen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Servoleitung
Servoleitung
YESSS-Bestellnummer
6131-0744
Produktcode
0027950/500
EAN-Code
4044776105503
Produktgruppe
Power cable < 1 kV, for moving application
Marke
ÖLFLEX®
Typ

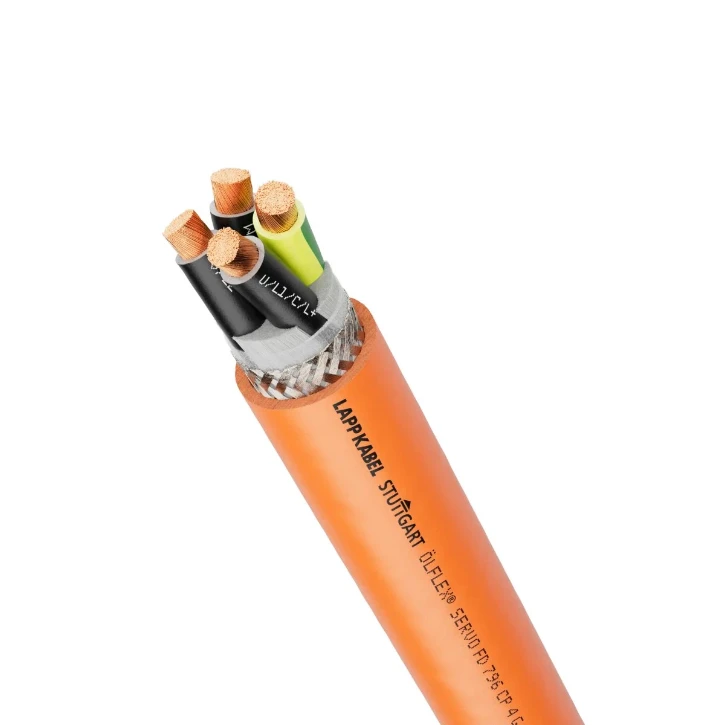

ÖLFLEX® SERVO FD 796 CP 4G1,5 500 M
Produktbeschreibung
Servoleitung Servoleitung; 4G1,5; Extended-Line; U0/U: 0,6/1 kV; PUR; Geschirmt; UL recognized; Schleppkette
Produktspezifikationen
Nominal cross section conductor
1.5 mm²
AWG size
16
Conductor category
Class 6 = very flexible
Number of cores
4
Material core insulation
Other
Specification core insulation
Polypropylene (PP)
Core identification
Other
Screen over stranding
Braiding
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
orange
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Flame retardant
According to IEC/EN 60332-1-2
Oil resistant according to EN IEC 60811-404
Nein
Outer diameter approximate
9.1 mm
Min. permitted bending radius, moving application with forced guidance
68.3 mm
Min. permitted bending radius, moving application/free movement
68.3 mm
Min. permitted bending radius, stationary application/permanent installation
36.4 mm
Permitted cable outer temperature after assembling without vibration
-50 - 90 °C
Nominal voltage U0
0.6 V
Nominal voltage U
1 V
Conductor material
Copper
Conductor surface
Bare
Core identification according to HD 308 S2
Nein
With protective conductor
Ja
Cable geometry
Round
Weight
139 kg/km
