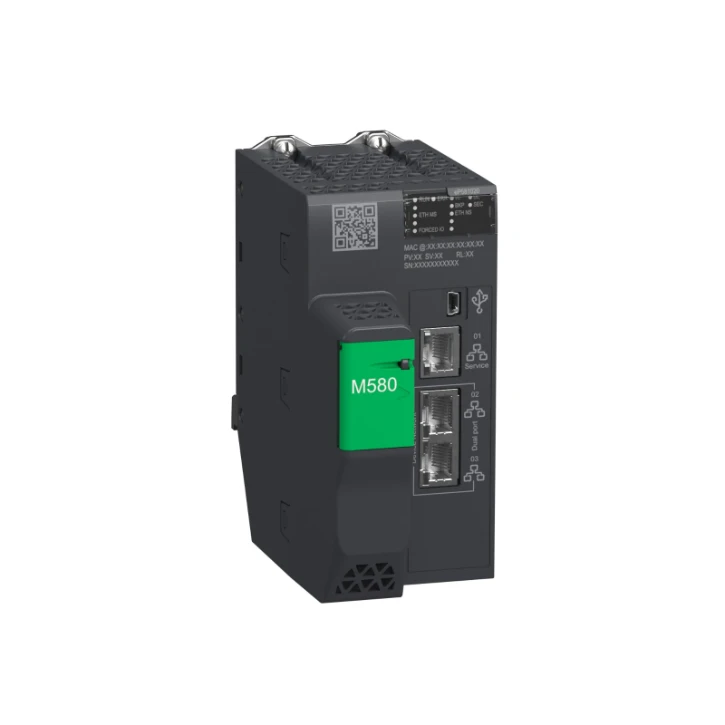

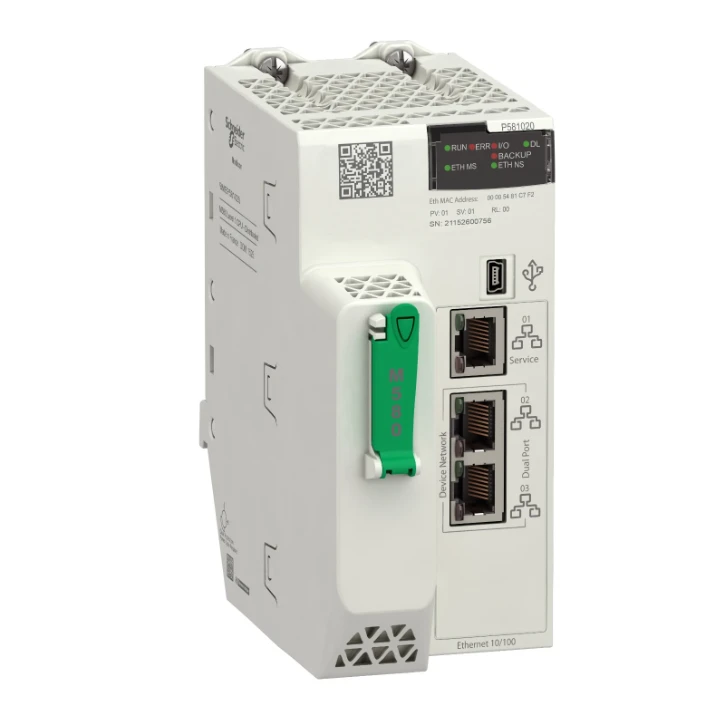

Prozessormodul M580, Stufe 1, Verteilt
- 6031-7043
- |
- BMEP581020
0 Stück
lagernd
Sie haben noch kein Konto? Erstelle einen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Prozessormodul M580, Stufe 1, Verteilt
Prozessormodul M580, Stufe 1, Verteilt
YESSS-Bestellnummer
6031-7043
Produktcode
BMEP581020
EAN-Code
3595864174303
Produktgruppe
PLC CPU-module
Marke
Schneider Electric
Serie
SPS-Steuerung – Modicon M580 – ePAC
Typ
BMEP581020
Produktbeschreibung
Modicon M580 Prozessormodule 58-10/20/30/40. Prozessormodul M580, Stufe 1, Verteilt, 1 Service-Port. EAs 1024 digitale E/A, 256 analoge E/A24 int. Kanäle, 4 MByte integriert(Programmspeicher), Ethernet_RJ45 2 DIO, max. Netzwerkmodule 2 Ethernet. Artikel-Nr. mit H (Harsh) -25 bis +70° C und Schutzlackierung.
Produktspezifikationen
Model
modular
Voltage type (supply voltage)
AC/DC
Number of HW-interfaces industrial Ethernet
3
Type of memory
NVRAM
Number of relay outputs
0
Max. number of time switches
0
Supply voltage DC
24 - 24 V
Processing time (1K, binary operation)
0.1 ms
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces USB
1
Number of analogue outputs
256
Number of HW-interfaces parallel
0
Number of analogue inputs
256
Number of HW-interfaces wireless
0
Number of digital inputs
1024
Number of HW-interfaces other
24
Number of digital outputs
1024
With optical interface
Nein
Supporting protocol for TCP/IP
Ja
Supporting protocol for PROFIBUS
Nein
Supporting protocol for CAN
Nein
Supporting protocol for INTERBUS
Nein
Supporting protocol for ASI
Ja
Supporting protocol for KNX
Nein
Supporting protocol for Modbus
Nein
Supporting protocol for Data-Highway
Nein
Supporting protocol for DeviceNet
Nein
Supporting protocol for SUCONET
Nein
Supporting protocol for LON
Nein
Supporting protocol for PROFINET IO
Nein
Supporting protocol for PROFINET CBA
Nein
Supporting protocol for SERCOS
Nein
Supporting protocol for Foundation Fieldbus
Nein
Supporting protocol for EtherNet/IP
Ja
Supporting protocol for AS-Interface Safety at Work
Nein
Supporting protocol for DeviceNet Safety
Nein
Supporting protocol for INTERBUS-Safety
Nein
Supporting protocol for PROFIsafe
Nein
Supporting protocol for SafetyBUS p
Nein
Supporting protocol for other bus systems
Nein
Radio standard Bluetooth
Nein
Radio standard WLAN 802.11
Nein
IO link master
Nein
Mobile communication standard GPRS
Nein
System accessory
Nein
Mobile communication standard 2G (GSM)
Nein
Redundancy
Nein
Mobile communication standard 3G (UMTS)
Nein
With display
Ja
Memory size
4000 KByte
Additional program memory possible
Ja
Suitable for rail mounting
Nein
Wall mounting/direct mounting
Nein
Front built-in possible
Nein
SIL according to IEC 61508
None
Rack-assembly possible
Ja
Suitable for safety functions
Nein
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
Nein
Appendant operation agent (Ex ib)
Nein
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
ATEX dust-ex-protection, Cat. 3D
Width
64.6 mm
Height
134.6 mm
Depth
130.3 mm
Supporting protocol for DNP3
Nein
Supporting protocol for IEC 60870
Nein
Supporting protocol for IEC 61850 Ethernet
Nein
