Allgemeine Information

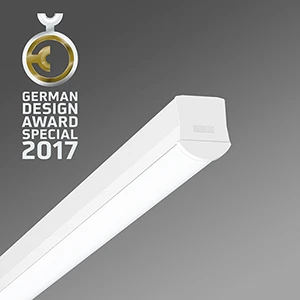

Lichtleiste, Diffusor opal
Lichtleiste, Diffusor opal
YESSS-Bestellnummer
6069-4394
Produktcode
16171014100
EAN-Code
4020863322640
Produktgruppe
Batten luminaire
Marke
Regiolux
Typ
ilia-ILG/0600 2100 830 ET
Produktbeschreibung
Gehäuse aus profiliertem Stahlblech, verwindungssteif, längsseitig talliert, die Profilierung des Oberteils bildet einen Kabelkanal für Mantelleitung bis 5 x 1,5 qmm, Lichtverteilung direkt diffus-strahlend mittels Diffusor opal, freistrahlend, UGR (4H/8H) 27.2. Elektrischer Anschluss über 3-polige Anschlussklemme in Steckkontakt-Technik.
Produktspezifikationen
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
Length
580 mm
Suitable for number of light sources
1
Lamp holder
None
With control gear
Ja
Dimming 0-10 V
Nein
Suitable for emergency lighting
Nein
Voltage type
AC
Nominal voltage
230 - 230 V
Dimming 1-10 V
Nein
Dimming DALI
Nein
Electrical connection with connector system
Nein
Material
Steel
Nominal current
83 - 83 mA
Dimming DMX
Nein
Housing colour
White
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
With switch
Nein
Dimmung GPRS
Nein
Width
56 mm
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Protection class according to IEC 61140
I
Dimming mains voltage modulation
Nein
Degree of protection (IP)
IP20
Dimming phase cut-off (trailing edge)
Nein
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Covering of the luminaire with thermally insulating material possible
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
With light source
Ja
Colour of light
White
Light distributor
Diffuser lens/optic/panel
Colour temperature
3000 - 3000 K
Colour rendering index CRI
80-89
Rated lifetime L70/B50 at 25 °C
100000 h
Degree of protection (NEMA)
Other
Filament test according to IEC 60695-2-11
850 °C - 30 s
With movement sensor
Nein
Suitable for lamp power
19 - 19 W
Max. system power
19 W
Height/depth
66 mm
Type of wiring
Ending
Number of poles
3
Connection type
Push-in clamp
Exchangeable control gear
Nein
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
With lamp protection basket
Nein
Luminaire efficacy
111 lm/W
